Printable PageThe plummer block bearing unit UCPP Series
Consists of the radial insert ball bearing UC201 and the steel sheet housing PP203. the bearing insert lubricated for life consists of a solid spherical outer ring, an inner ring extended on both sides and a cage; the galvanized plummer block housing (steel sheet) is equipped with two bores for fixing
The radial insert ball bearing is two-sided equipped with a standard seal and centrifugal disc made of sheet steel. it is suitable for high loads and speeds, also in case of alternating direction of rotation; misalignments can be equalized by spherical bearing seat
Its temperature resistance ranges from -20 °C up to +100 °C

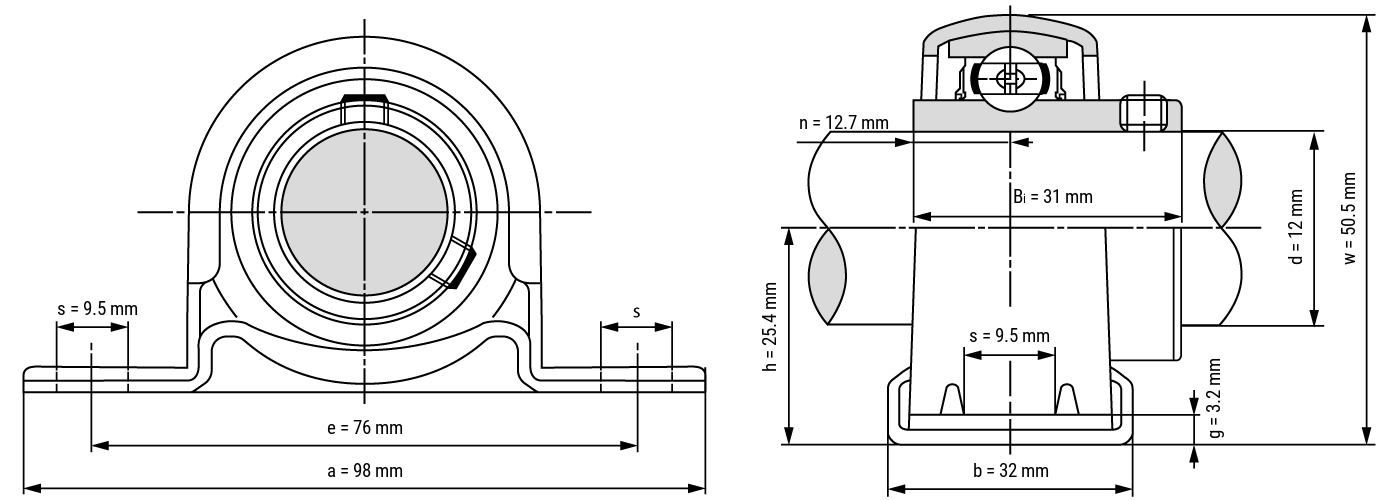

| select | Inquiry | Typ | Shaft | Dimensions in mm | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in mm | h | a | e | b | s | g | w | Bi | n | (kg) | |||
| UCPP201 | 12 | 25,4 | 98 | 76 | 32 | 9,5 | 3,2 | 50,5 | 31 | 12,7 | 0,25 | ||
| UCPP202 | 15 | 25,4 | 98 | 76 | 32 | 9,5 | 3,2 | 50,5 | 31 | 12,7 | 0,25 | ||
| UCPP203 | 17 | 25,4 | 98 | 76 | 32 | 9,5 | 3,2 | 50,5 | 31 | 12,7 | 0,25 | ||
| UCPP204 | 20 | 25,4 | 98 | 76 | 32 | 9,5 | 3,2 | 50,5 | 31 | 12,7 | 0,29 | ||
| UCPP205 | 25 | 28,6 | 108 | 86 | 32 | 11,5 | 4 | 56,6 | 34,1 | 14,3 | 0,32 | ||
| UCPP206 | 30 | 33,3 | 117 | 95 | 38 | 11,5 | 4 | 66,3 | 38,1 | 15,9 | 0,54 | ||
| UCPP207 | 35 | 39,7 | 129 | 106 | 42 | 11,5 | 4,6 | 78 | 42,9 | 17,5 | 0,67 | ||
