Printable PageThe flanged housing unit UCPFL-201 consists of the radial insert ball bearing UC201 and the housing PFL201.

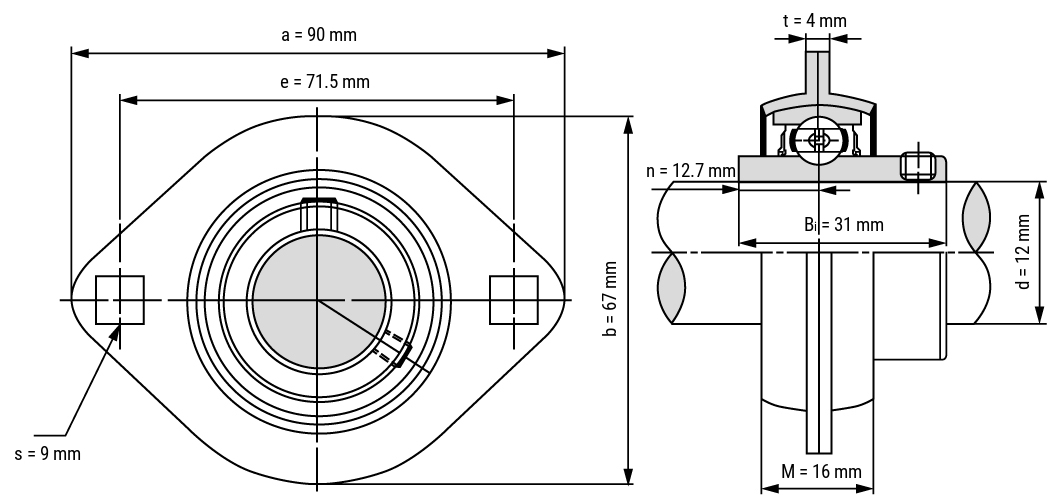

The bearing insert consists of a solid spherical outer ring, an inner ring extended on both sides and a cage; the oval flanged housing (steel sheet) is equipped with two holes for fixing
Suitable for low loads; misalignments can be equalized by spherical bearing seat
Steel sheet is extremely favourable and space-saving
Its temperature resistance ranges from -20°C up to +120°C, in case of plastic seal up to +100 degrees Celsius
| select | Inquiry | Typ | Shaft | Dimensions in mm | Screw | Bearing insert | Housing | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in mm | a | e | b | M | s | t | Bi | n | (kg) | ||||||
| UCPFL201 | 12 | 90 | 71,5 | 67 | 16 | 9 | 4 | 31 | 12,7 | M8 | UC201 | PFL204 | 0,3 | ||
| UCPFL202 | 15 | 90 | 71,5 | 67 | 16 | 9 | 4 | 31 | 12,7 | M8 | UC202 | PFL204 | 0,28 | ||
| UCPFL203 | 17 | 90 | 71,5 | 67 | 16 | 9 | 4 | 31 | 12,7 | M8 | UC203 | PFL204 | 0,27 | ||
| UCPFL204 | 20 | 90 | 71,5 | 67 | 16 | 9 | 4 | 31 | 12,7 | M8 | UC204 | PFL204 | 0,25 | ||
| UCPFL205 | 25 | 95 | 76 | 71 | 18 | 9 | 4 | 34 | 14,3 | M8 | UC205 | PFL205 | 0,29 | ||
| UCPFL206 | 30 | 113 | 90,5 | 84 | 18 | 11 | 5,2 | 38 | 15,9 | M10 | UC206 | PFL206 | 0,47 | ||
| UCPFL207 | 35 | 122 | 100 | 94 | 20 | 11 | 5,2 | 42 | 17,5 | M10 | UC207 | PFL207 | 0,63 | ||
| UCPFL208 | 40 | 148 | 119 | 100 | 21 | 13,5 | 6,8 | 49 | 19 | M12 | UC208 | PFL208 | 0,92 | ||
