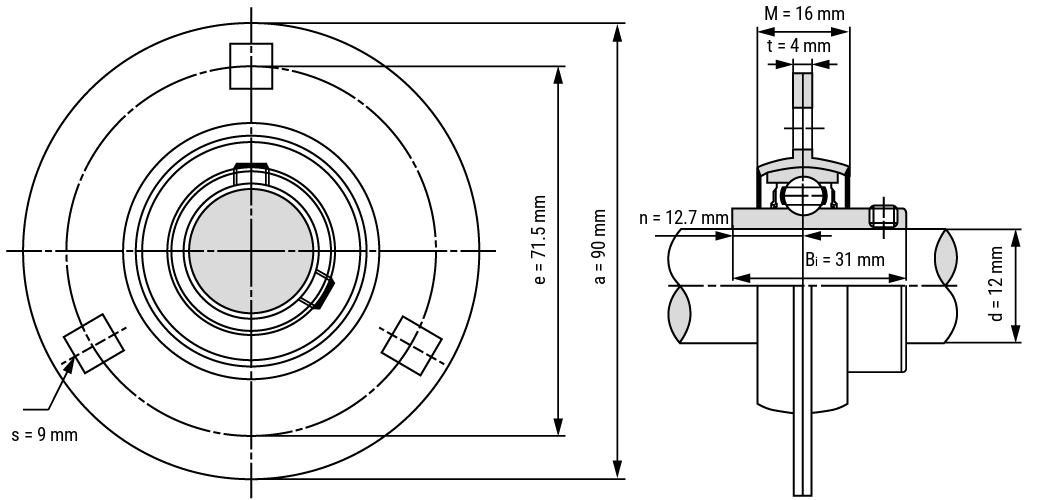

Printable PageThe flanged housing unit UCPF-201 consists of the radial insert ball bearing UC201 and the housing PF201.
the bearing insert consists of a solid spherical outer ring, an inner ring extended on both sides and a cage; the round flanged housing (steel sheet) is equipped with three or four holes for fixing
suitable for low loads; misalignments can be equalized by spherical bearing seat
steel sheet is extremely favourable and space-saving
its temperature resistance ranges from -20°C up to +120°C, in case of plastic seal up to +100 degrees Celsius
| select | Inquiry | Typ | Shaft | Dimensions in mm | Schraube | Lagereinsatz | Gehäuse | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in mm | a | e | M | s | t | Bi | n | (kg) | ||||||
| UCPF201 | 12 | 90 | 71,5 | 16 | 9 | 4 | 31 | 12,7 | M8 | UC201 | PF204 | 0,37 | ||
| UCPF202 | 15 | 90 | 71,5 | 16 | 9 | 4 | 31 | 12,7 | M8 | UC202 | PF204 | 0,35 | ||
| UCPF203 | 17 | 90 | 71,5 | 16 | 9 | 4 | 31 | 12,7 | M8 | UC203 | PF204 | 0,34 | ||
| UCPF204 | 20 | 90 | 71,5 | 16 | 9 | 4 | 31 | 12,7 | M8 | UC204 | PF204 | 0,32 | ||
| UCPF205 | 25 | 95 | 76 | 18 | 9 | 4 | 34 | 14,3 | M8 | UC205 | PF205 | 0,37 | ||
| UCPF206 | 30 | 113 | 90,5 | 18 | 11 | 5,2 | 38 | 15,9 | M10 | UC206 | PF206 | 0,61 | ||
| UCPF207 | 35 | 122 | 100 | 20 | 11 | 5,2 | 42 | 17,5 | M10 | UC207 | PF207 | 0,78 | ||
| UCPF208 | 40 | 148 | 119 | 21 | 13,5 | 6,8 | 49 | 19 | M12 | UC208 | PF208 | 1,31 | ||
| UCPF209 | 45 | 150 | 120,5 | 23 | 13,5 | 6,8 | 49 | 19 | M12 | UC209 | PF209 | 1,35 | ||
| UCPF210 | 50 | 157 | 127 | 25 | 13,5 | 8 | 51,6 | 19 | M12 | UC210 | PF210 | 1,67 | ||
| UCPF211 | 55 | 168 | 138 | 26 | 13,5 | 8 | 55,6 | 22,2 | M12 | UC211 | PF211 | 2,06 | ||
