Printable PageBall Bearing Rod End Series have Low friction, double row ball bearing rod end with misalignment capability,While spherical plain bearings offer misalignment capability in a fixed housing position; rod ends offer ease in mounting and adjustment of position in installations such as mechanisms, linkages, and control rods. Rod ends also provide a compact, lightweight, economical design alternative to a conventional housing installation.
Today, rod ends, or Heim joints, can be found throughout industry in aircraft, helicopters, jet engines, military vehicles, submarines and surface ships, transportation equipment, agricultural and recreational vehicles, lawn and garden equipment, material handling, and fluid power applications.

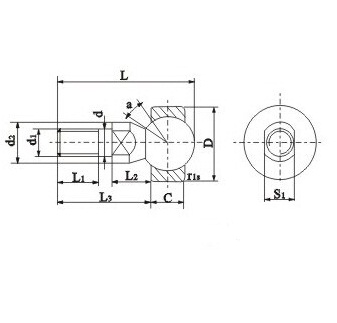

| select | Inquiry | Designation | Dimensions（mm） | Static load ratings (KN) | Weight(Kg) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | d2 | l1 | l2 | l3 | L | S1 | C | D | rs | α° ≈ | |||||
| SQD5 | M5 | 9 | 8 | 8 | 19 | 27.5 | 7 | 6 | 16 | 0.3 | 25 | 2 | 0.014 | ||
| SQD6 | M6 | 10 | 11 | 8.8 | 23.8 | 33.5 | 8 | 6.75 | 18 | 0.3 | 25 | 3.2 | 0.021 | ||
| SQD8 | M8 | 12 | 12 | 11.6 | 28.6 | 41 | 10 | 9 | 22 | 0.3 | 25 | 5.7 | 0.042 | ||
| SQD10 | M10×1.25 | 14 | 15 | 14.2 | 34.2 | 49 | 11 | 10.5 | 26 | 0.3 | 25 | 9.2 | 0.067 | ||
| SQD12 | M12×1.25 | 17 | 17 | 15.1 | 38.1 | 55.1 | IS | 12 | 30 | 0.5 | 25 | 14 | 0.108 | ||
| SQD14 | M14×1.5 | 19 | 22 | 16.8 | 51.3 | 70.7 | 17 | 13.5 | 34 | 0.5 | 20 | 19 | 0.167 | ||
| SQD16 | M16×1.5 | 22 | 23 | 18 | 54.5 | 76.3 | 19 | 15 | 38 | 0.5 | 20 | 26 | 0.238 | ||
