Home > Product > Plummer Blocks > SN Series

Advanced search

Object
2D
PDF Download

SN Series

Office Add: Room B 1002, 13# Builing, Huian County, Fujian Pro, P.R.China

Factory: Lingshan Industrial Area, Tuzai Town, Huian County, Fujian, P. R. China

Tel:0086-595-87338530

Fax:0086-595-87338530

Email:arrowbearing@aliyun.com

MSN: dongmingcsp@hotmail.com

SKYPE:dongmingcsp

Website: www.arrowbearing.com；

www.qabbearings.com

Hot tags:An sn series manufacturer and supplier, specialized in providing various sn series with excellent quality and perfect solution. If you're going to buy sn series with excellent service, welcome to get more details from us.

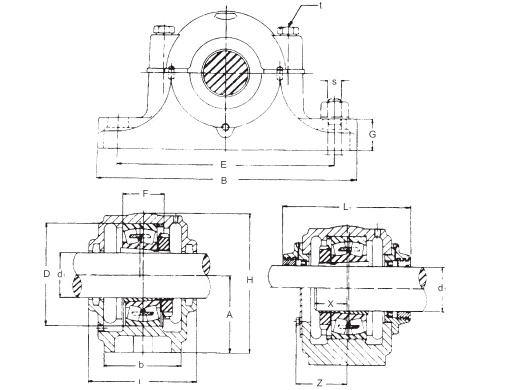

select	Inquiry	Housing NO.	Shaft Dia. d1		D	B	b	G	F	A	L	H	E	E1	L1	X	Z	d2H12
select	Inquiry	Housing NO.	Metric	Inch	H8	B	b	G	H13	h13	L	H	E	E1	L1	X	Z	Metric
		SN505	20	3/4	52	165	46	22	25	40	67	75	130	25	-	22	-	21.5
		SN506	25	1	62	185	52	22	30	50	77	90	150	25	22	26.5
		SN507	30	1-1/8	72	185	52	22	33	50	82	95	150	25	-	24	-	31.5
		SN508	35	1-1/4	80	205	60	25	33	60	85	110	170	30	-	26	-	36.5
		SN509	40	1-1/2	85	205	60	25	31	60	85	112	170	30	-	28	-	41.5
		SN510	45	1-3/4	90	205	60	25	33	60	90	115	170	30	-	28	-	46.5
		SN511	50	2	100	255	70	28	33	70	95	130	210	35	160	30	54	51.5
		SN512	55	2-1/8	110	255	70	30	38	70	105	135	210	35	172	32	62	56.5
		SN513	60	2-1/4	120	275	80	30	43	80	110	150	230	40	172	36	62	62
		SN515	65	2-1/2	130	280	80	30	41	80	115	155	230	40	182	38	68	67
		SN516	70	2-3/4	140	315	90	32	43	95	120	175	260	50	184	40	68	72
		SN517	75	3	150	320	90	32	46	95	125	185	260	50	184	42	70	77
		SN518	80	3-1/4	160	345	100	35	62.4	100	145	195	290	50	204	50	81	82
		SN519	85	-	170	345	100	35	53	112	140	210	290	50	-	-	-	87
		SN520	90	3-1/2	180	380	110	40	70.3	112	160	218	320	60	224	54	90	92
		SN522	100	4	200	410	120	45	80	125	175	240	350	70	232	60	92	102
		SN524	110	4-1/4	215	410	120	45	86	140	185	270	350	70	248	64	95	113
		SN526	115	4-1/2	230	445	130	50	90	150	190	290	380	70	268	64	100	118
		SN528	125	5	250	500	150	50	98	150	205	305	420	80	286	70	108	128
		SN530	135	5-1/4	270	530	160	60	106	160	220	325	450	90	304	76	113	138
Previous12 Next
