SBPP Series - Set Screw Locking Type

The plummer block bearing unit SBPP-201 consists of the radial insert ball bearing SB201 and the steel sheet housing PP201.

the bearing insert has an inner ring extended on one side and a spherical outside surface profile of the outer ring and is fixed with a grub screw; the galvanized plummer block housing (steel sheet) is equipped with two bores for fixing

suitable for low loads; misalignments can be equalized by spherical bearing seat

steel sheet is extremely favourable and space-saving

its temperature resistance ranges from -20°C up to +120°C, in case of plastic seal up to +100 degrees Celsius

Hot tags:An sbpp series - set screw locking type manufacturer and supplier, specialized in providing various sbpp series - set screw locking type with excellent quality and perfect solution. If you're going to buy sbpp series - set screw locking type with excellent service, welcome to get more details from us.

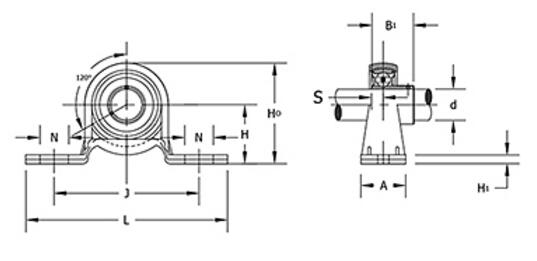

select	Inquiry	Unit No.	Shaft Diameter	Shaft Height	Mounting Hole	Housing Length	Housing Width	Basic Dynamic Load	Basic Static Load
select	Inquiry	Unit No.	d	H (in)	Center-to-Center J (in)	L (in)	A (in)	Rating (Cr) lbs	Rating (Cor) lbs
		SBPP201-12MM	12 mm	0.875	2.6772	3.3858	0.9843	2158.17	1034.12
		SBPP201-8	1/2 in	0.875	2.6772	3.3858	0.9843	2158.17	1034.12
		SBPP202-10	5/8 in	0.875	2.6772	3.3858	0.9843	2158.17	1034.12
		SBPP202-15MM	15 mm	0.875	2.6772	3.3858	0.9843	2158.17	1034.12
		SBPP203-11	11/16 in	0.875	2.6772	3.3858	0.9843	2158.17	1034.12
		SBPP203-17MM	17 mm	0.875	2.6772	3.3858	0.9843	2158.17	1034.12
		SBPP204-12	3/4 in	1	2.9921	3.8583	1.2598	2877.55	1494.98
		SBPP204-20MM	20 mm	1	2.9921	3.8583	1.2598	2877.55	1494.98
		SBPP205-14	7/8 in	1.125	3.3858	4.252	1.2598	3147.33	1764.75
		SBPP205-15	15/16 in	1.125	3.3858	4.252	1.2598	3147.33	1764.75
		SBPP205-16	1 in	1.125	3.3858	4.252	1.2598	3147.33	1764.75
		SBPP205-25MM	25 mm	1.125	3.3858	4.252	1.2598	3147.33	1764.75
		SBPP206-18	1-1/8 in	1.3125	3.7402	4.6063	1.4961	4383.77	2540.34
		SBPP206-19	1-3/16 in	1.3125	3.7402	4.6063	1.4961	4383.77	2540.34
		SBPP206-20	1-1/4 in	1.3125	3.7402	4.6063	1.4961	4383.77	2540.34
		SBPP206-30MM	30 mm	1.3125	3.7402	4.6063	1.4961	4383.77	2540.34
		SBPP206-30MM	30 mm	1.3125	3.7402	4.6063	1.4961	4383.77	2540.34
		SBPP207-20	1-1/4 in	1.5625	4.1732	5.0787	1.6535	5777.59	3439.58
		SBPP207-21	1-5/16 in	1.5625	4.1732	5.0787	1.6535	5777.59	3439.58
		SBPP207-22	1-3/8 in	1.5625	4.1732	5.0787	1.6535	5777.59	3439.58
