Printable PageThe flanged housing unit SBPF-201 consists of the radial insert ball bearing SB201 (UB, AS, YAT) and the housing PF203.
The bearing insert consists of an outer ring with spherical outside surface profile, an inner ring and a cage; the round flanged housing (steel sheet) is equipped with three or four holes for fixing
suitable for low loads; misalignments can be equalized by spherical bearing seat
Steel sheet is extremely favourable and space-saving
its temperature resistance ranges from -20 degrees Celsius up to +120 degrees Celsius, in case of plastic seal up to +100°C

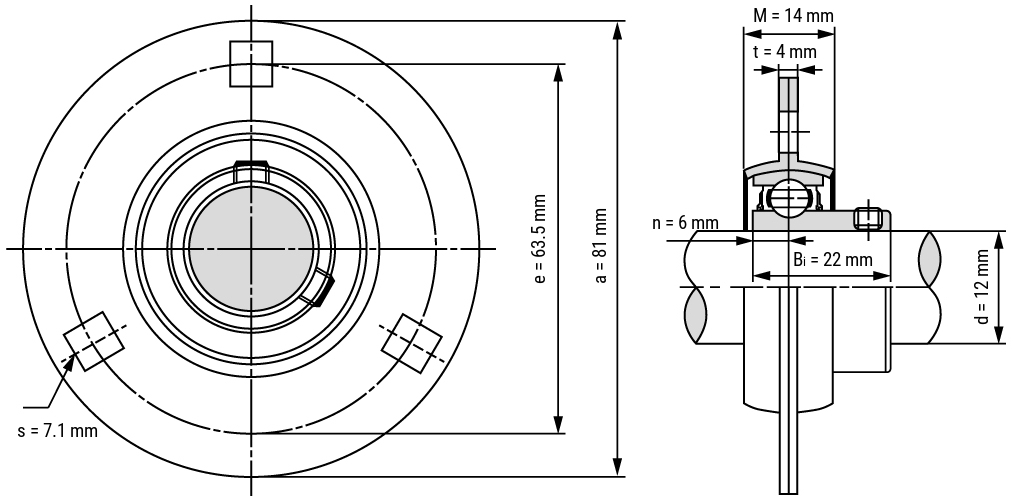

| select | Inquiry | Typ | Shaft | Dimensions in mm | Schraube | Lagereinsatz | Gehäuse | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in mm | a | e | M | s | t | Bi | n | (kg) | ||||||
| SBPF201 | 12 | 81 | 63,5 | 14 | 7,1 | 4 | 22 | 6 | M6 | SB201 | PF203 | 0,26 | ||
| SBPF202 | 15 | 81 | 63,5 | 14 | 7,1 | 4 | 22 | 6 | M6 | SB202 | PF203 | 0,26 | ||
| SBPF203 | 17 | 81 | 63,5 | 14 | 7,1 | 4 | 22 | 6 | M6 | SB203 | PF203 | 0,26 | ||
| SBPF204 | 20 | 90 | 71,5 | 16 | 9 | 4 | 25 | 7 | M8 | SB204 | PF204 | 0,31 | ||
| SBPF205 | 25 | 95 | 76 | 18 | 9 | 4 | 27 | 7,5 | M8 | SB205 | PF205 | 0,35 | ||
| SBPF206 | 30 | 113 | 90,5 | 18 | 11 | 5,2 | 30 | 8 | M10 | SB206 | PF206 | 0,56 | ||
| SBPF207 | 35 | 122 | 100 | 20 | 11 | 5,2 | 32 | 8,5 | M10 | SB207 | PF207 | 0,74 | ||
