Home > Product > Rod-End Bearings > POS Series

Advanced search

Object
2D
PDF Download

POS Series

Rod ends consist of an eye-shaped head with integral shank that forms a housing for a spherical plain bearing. As a rule, rod ends are available with left or right-hand female (internal) or male (external) threads.

Rod ends are also available for specific applications

Hot tags:An pos series manufacturer and supplier, specialized in providing various pos series with excellent quality and perfect solution. If you're going to buy pos series with excellent service, welcome to get more details from us.

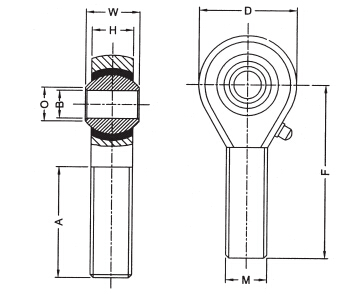

select	Inquiry	Model Number	Main Dimensions (Mm)												Permit of Angel	Static load		Weight
select	Inquiry	Model Number	B	W	O	H	D	F	K	J	L	A/F	A	Thread M	α	Radial	Angel	(g)
		POS 5 R/L H.	5	8	7.7	6	16	33	-	-	-	-	20	5X0.8	13	5.7	1.5	14
		POS 6 R/L H.	6	9	8.9	7	18	36	-	-	-	-	22	6X1.0	13	7	2	21
		POS 8F R/L H.	8	12	10.4	9	22	42	-	-	-	-	25	8X1.0	13	11.6	3.5	34
		POS 8 R/L H.	8	12	10.4	9	22	42	-	-	-	-	25	8X1.25	13	11.6	3.5	34
		POS 10F R/L H.	10	14	12.9	11	26	48	-	-	-	-	29	10X1.25	13	14.5	4.8	58
		POS 10 R/L H.	10	14	12.9	11	26	48	-	-	-	-	29	10X1.5	13	14.5	4.8	58
		POS 12F R/L H.	12	16	15.4	12	30	54	-	-	-	-	33	12X1.25	13	17	6.5	92
		POS 12 R/L H.	12	16	15.4	12	30	54	-	-	-	-	33	12X1.75	13	17	6.5	92
		POS 14F R/L H.	14	19	16.8	14	34	60	-	-	-	-	36	14X1.5	15	24	8.2	135
		POS 14 R/L H.	14	19	16.8	14	34	60	-	-	-	-	36	14X2.0	15	24	8.2	135
		POS 16F R/L H.	16	21	19.3	15	38	66	-	-	-	-	40	16X1.5	15	28.5	10	205
		POS 16 R/L H.	16	21	19.3	15	38	66	-	-	-	-	40	16X2.0	15	28.5	10	205
		POS 18 R/L H.	18	23	21,8	17	42	72	-	-	-	-	44	18X1.5	15	35	12.5	285
		POS 20 R/L H.	20	25	24.3	18	46	78	-	-	-	-	47	20X1.5	15	40	15	370
		POS 22 R/L H.	22	28	25.8	20	50	84	-	-	-	-	51	22X1.5	15	52	18	475
		POS 25 R/L H.	25	31	29.6	22	56	94	-	-	-	-	57	24X2.0	15	60	23	650
		POS 30 R/L H.	30	37	34.8	26	67	110	-	-	-	-	66	30X2.0	15	81	30	1070
